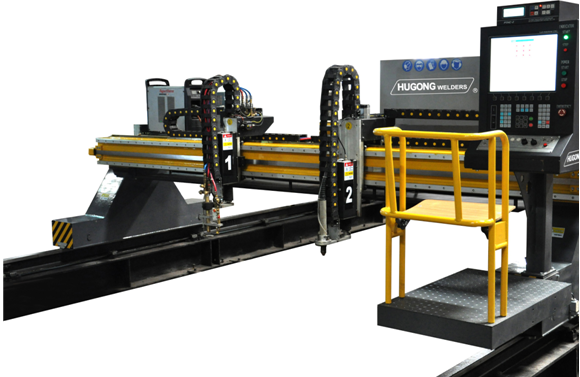

GANTRY TYPE CNC PLASMA CUTTING MACHINE

Model: ECONOCUT 4000/POWERMAX 105

Main Components

Our latest model of Gantry Plasma machine from Hugong company Effective cutting width : 3200 mm

Effective cutting length: 12000 mm

Max. cutting speed : 12000 mm/min

Torch up-down moving distance : 170 mm

Automatic THC

the machine include two different cutting system

1 - Plasma cutting torch by powermax105 from Hypertherm

2 - Flame cutting torch

Thickness capacity :

1 - By Flame Torch : 6 - 120 mm

2 - By Plasma Torch : dross free: 14 mm and pierce : 19 mm

MACHINE VIDEO
