CNC ROUTER MACHINE
Product Description

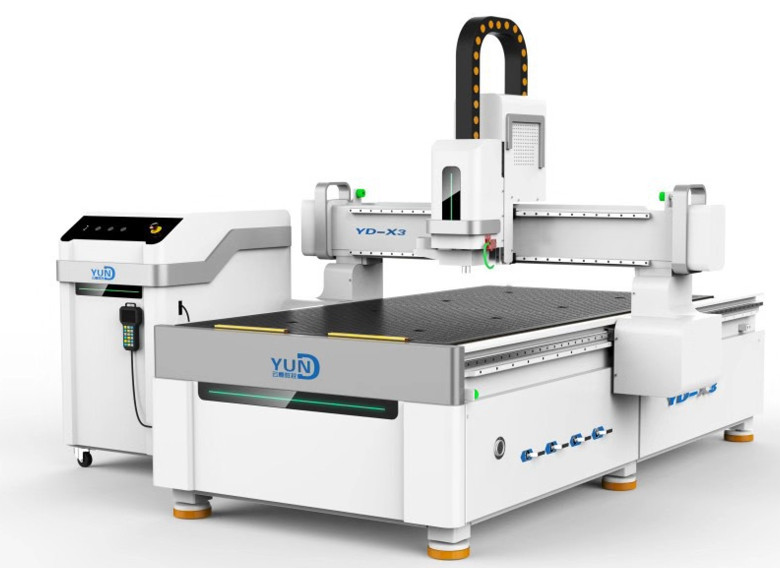

CNC ROUTER MACHINE C/W DUST COLLECTOR
Model : YD - X3/1530
MACHINE PARAMETER:
• Working area: 1500x3000 mm
• Drive motor: Taiwan Delta servo motor, Japanese SHIMPO reducer
• Control system: Ncstudio DSP NK105 control system
• Table: vacuum table
• X Y Z transmission: X,Y axis helical rack drive , Z axis Taiwan TBI ball screw drive
• Spindle power: chinese 6KW water cooling spindle Chiller
• Spindle speed: 0-24000r/min
• Repositioning accuracy: 0.05mm
• Vacuum pump power: 7.5KW air cooling pump
• Taiwan Delta inverter 11kw
• Power supply: 380V/50Hz/3PH
• Automatic lubrication system
• Machine head pass aluminum oxidation treatment
• Machine body pass quenching heat treatment
