DP2-1.5 - DOOR PANEL ROLL FORMING MACHINE
sales@larosagroup.com
Product Description
MODEL: DP2-1.5 (DUPLEX C)
MATERIAL PARAMETER | ||||||
MATERIAL | THICKNESS | FORMING STEPS | ROLLER SPECIFICATION | MAIN MOTOR | MACHINE SPEED | SIDE A : DOUBLE SIDED FORMING DOOR PANEL BOTTOM SIDE (PAN) |
GALVANIZED IRON | 1 - 1.5mm | 16 STATION | GCr15 | 5.5kW | 6 - 8m/min. | SIDE B : FORMING DOOR PANEL TOP SLIDE TOP SIDE (LIP) |

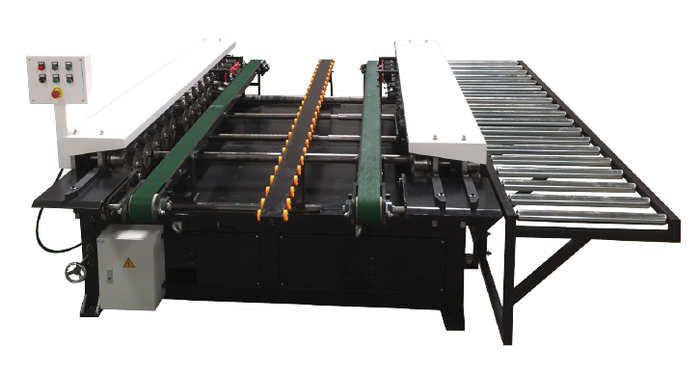

DOOR PANEL ROLL FORMING MACHINE PHOTO | ||

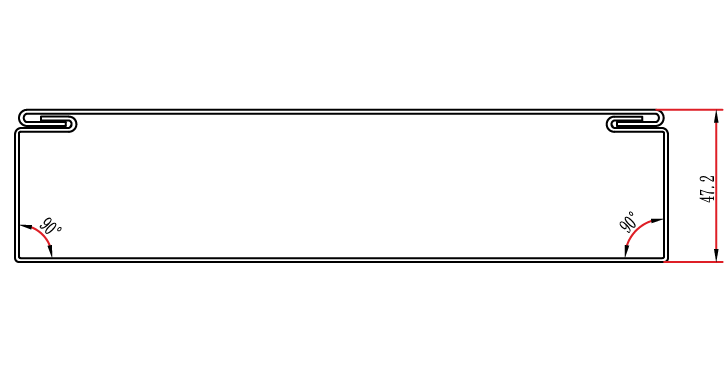

DOOR PANEL DRAWING 1 | DOOR PANEL DRAWING 2 | DOOR PANEL DRAWING 3 |
