HPB-70 - HYDRAULIC PROFILE BENDING MACHINE
sales@larosagroup.com
Product Description

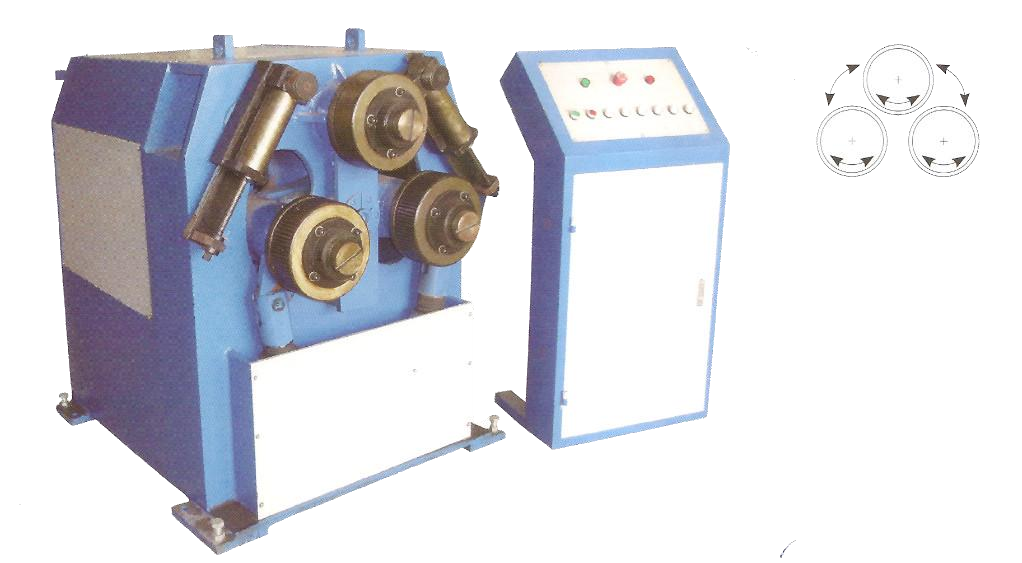

HYDRAULIC PROFILE BENDING MACHINE
MODEL: HPB-70
TECHNICAL PARAMETERS:
Shaft Dia. |
70mm |
Lower Rollers Dia. |
250mm |
Top Rollers Dia. |
250mm |
Roller Speed |
20m/min |
Motor Power |
5.5kW |
Length |
1100mm |
Width |
1300mm |
Height |
1250mm |
Weight |
1600KGS |
- Hydraulic movement of two lower rollers.
- Optimum adaptation for profile through variable axis.
- High quality steel structure.
- Hardened shaft.
- Hardened standard rollers. Adjustable guide rollers. Overload clutch.
Standard Accessories
Angle rollers, Control Panel, Operating Tools, Operator, Manual
Optional Accessories
Foot Pedal, Digital Display, CNC control system, Special Rollers for Tubes.
