HPB SERIES PM- HYDRAULIC PRESS MACHINE
Product Description

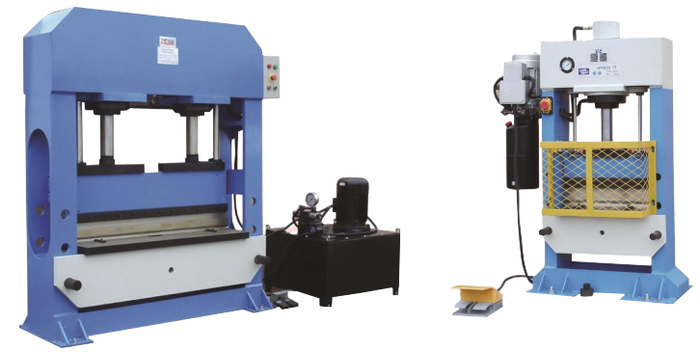

HPB SERIES PM - HYDRAULIC PRESS MACHINE
Main Features:
HPB Series Hydraulic Press are used for assembling, dismantling, alignment, calendaring, tension, bending and punching. The machine supplied oil by Italy CNK and CBZ Pump. It could save 60% energy compared with the traditional model. The efficiency increased to 2 – 3 times. It takes the advantage of small volume, high pressure, simple structure and light weight.
All Machines includes:
1.Italy Marzocchi gear pump
2.Press adjustment valve from USA, other valves from Taiwan
3.Main electric components from Schneider
4.Motor from China famous brand
5.With emergency stop
6.With pedal switch
7.With worktable lifting bar
8.With safety protection
9. If width over 1000mm,machine can be two cylinders.
Technical Parameters:
MODEL |
HPB-20 |
HPB-30 |
HPB-50 |
HPB-63 |
HPB-1010 |
CAPACITY |
200 |
300 |
500 |
630 |
1000 |
PRESSURE (MPa) |
25 |
25 |
25 |
30 |
30 |
TRAVEL (mm) |
200+270 |
300+270 |
220+405 |
220+405 |
250+405 |
TABLE SIZE |
200X360 |
300X400 |
400X800 |
400X800 |
460X980 |
DIMENSION (mm) |
1060X500X1400 |
1160X550X1600 |
1500X650X1950 |
1500X650X1950 |
1840X750X2250 730X630X960 |
WEIGHT (kg) |
550 |
650 |
1100 |
1200 |
1420 |
MODEL |
HPB-150 |
HPB-200 |
HPB-300 |
HPB-100 EX |
HPB-150 EX |
CAPACITY |
1500 |
2000 |
3000 |
1000 |
1500 |
PRESSURE (MPa) |
30 |
30 |
30 |
30 |
30 |
TRAVEL (mm) |
250+405 |
300+405 |
300+405 |
300+405 |
300+405 |
TABLE SIZE |
460X980 |
500X1000 |
700X1200 |
420X1300 |
420X1300 |
DIMENSION (mm) |
1840X750X2250 730X630X960 |
1940x950x2350 900X800X1060 |
2100x950x2700 1100X1200X1350 |
2100x750x2250 630X730X960 |
2100x750x2250 630X730X960 |
WEIGHT (kg) |
1750 |
2400 |
4200 |
2100 |
2400 |
