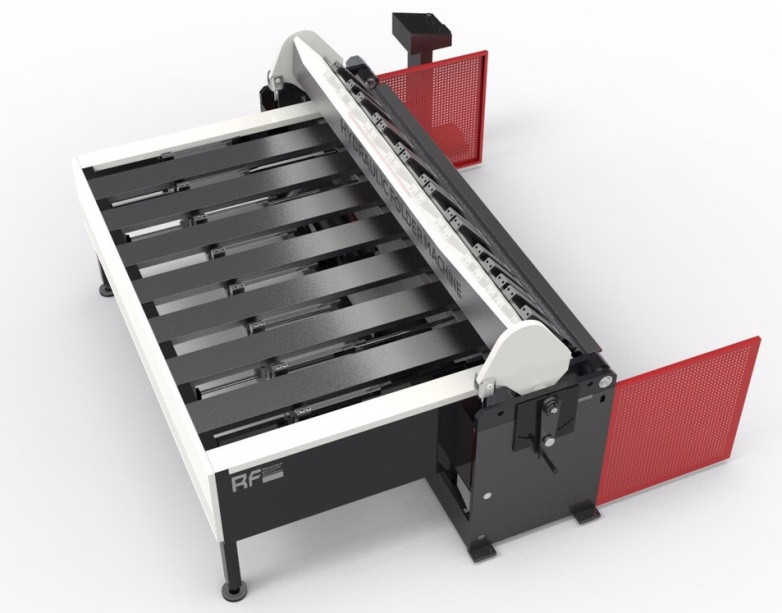

CNC HYDRAULIC FOLDING AMCHINE

MODEL : HPK - SERIES

Description:

The most recent edition to the Hydraulic NC Pan brake range now comes complete with a 7” colour touch screen control panel. The beauty of this Touch screen design is it can store a massive 99 programs with 20 bend angles per program, and each bend angle allows you to fine-tune the material bend compensation. This feature simply removes the guess work out and takes bending to the next level to achieve accuracy & repeatability every time. Another unique attribute built-in is a quick action head allowing adjusting for the different material thickness from 1mm to 4mm.

The welded frame is constructed from heavy gauge steel for superior strength & minimal flex when operating under full capacity with extreme load.

Features:

A. 2500mm x 4mm bending capacity

B.  NC Touch Screen Control features 99 programs, each program has up to 20 bends & each bend has material compensation. It also incorporates a quick bend function for jobbing work

C.  Auto cycle: after clamping bottom beam will bend to pre-set angle and return, head unclamps to set position

D. NC programmable opening height & bending dwell timer ensures consistent bending angle

E. Quick action rapid head adjustment to optimize bend radius on 1-6mm material thickness

F. Heavy duty steel fabricated construction

G. Roving foot pedal incorporates control panel for maximum flexibility

H. Unique moving guards ensures the front of the machine is clear for unobstructed loading/unloading of material

I. Quality hydraulic and electrical components supplies by leading manufactures including Rexroth, Telemechanique and Merlin Gerin

J. Extended fingers allows bending of pans or boxes to a depth of 205mm

K.  Includes an CNC control backgauge.

L. Mild steel capacity is rated on hot rolled material with 250MPa
