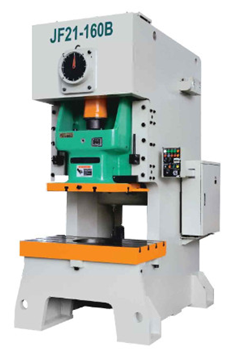

OPEN BACK PRESS WITH DRY CLUTCH AND SHEARING BLOCK PROTECTOR

Model: JF21- SERIES

Main Features:

• Welded body with steel plate and high intensity
• Main motor is made by Seimens
• Adopts pneumatic friction clutch and brake.
• Cluster gear adopts the flooding oil lubrication.
• Six-face rectangle length guide
• Rigid pressing down style overload protector.
• JF21-25/25b/45 adopts manual shut height adjustment among these types. JF21-25/45 adopts scale display and JF21-25b with digital display.
• JF21-45 ca equip with die set height adjustment motor, the value will be displayed by digital.
• JF21-25B, JF21-45 and above type equipped with lifting balance cylinder
• Duplex valve imported
• JF21-160 and above models adopt grease lubrication system
• Balancing cylinder adopts manual lubrication system
• Controlled by PLC with internal brand
• Buttons, indicators, AC contactors, air circuit breakers and other controlling devices are imported from internal brand.
• Equipped with optional air cushion device, automatic feed shaft and photo electric protector, which can use to work with various automatic equiopments

Technical Parameters:
