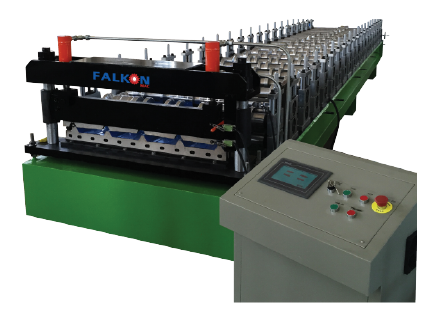

ROOF SHEET ROLL FORMING MACHINE
sales@larosagroup.com
Product Description
ROOF SHEET
ROLL FORMING MACHINE
| MAIN MACHINE COMPOSITION | ||||||
| The line consists of De-coiler (Hydraulic or Manual), Material Guiding, Roll Forming System, Hydraulic Cutting System, Run Out Table, Control Cabinet with PLC Controller | ||||||
| MATERIAL PARAMETER | ||||||
| MATERIAL | THICKNESS | COIL WIDTH | MAIN MOTOR POWER | FORMING SPEED | HYDRAULIC STATION POWER | NO. OF STATIONS |
| PRE-PAINTER GALVANIZED IRON (PPGI) | 0.4 0.8mm | 1220mm | 5.5kW | 12 -15 m/min. (NO CUTTING TIME) | 4kW | 20 STATIONS |
| YX35-200-1000 PROFILE DRAWING | ||||||
 |
||||||
| YX32-250-1000 PROFILE DRAWING | ||||||
 |
||||||
| YX45-250-1000 PROFILE DRAWING | ||||||
 |
||||||

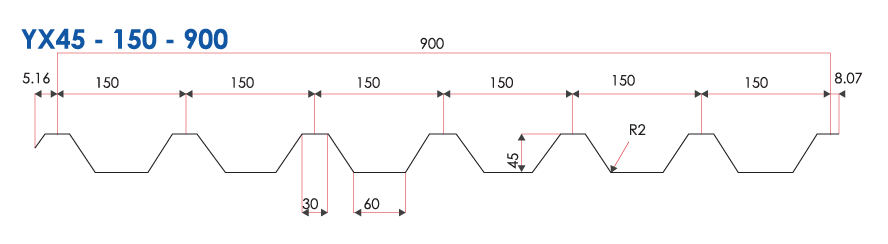

| YX45-150-900 PROFILE DRAWING | ||||||
 |
||||||
