S-200R- Horizontal Rotating Band Saw Machine
sales@larosagroup.com
Product Description

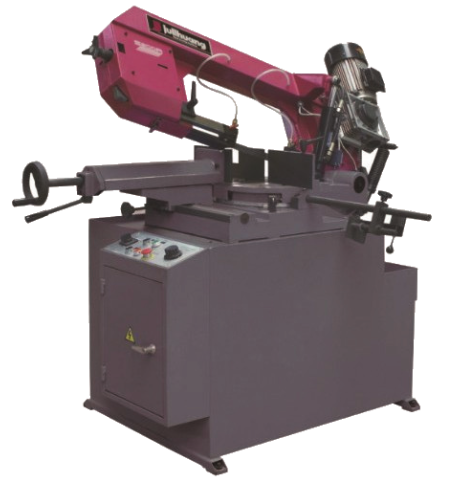

Horizontal Rotating Band Saw Machine
Model: S-200R
Standard Features:
1. Two directions angle swivel +45°~0°~ + 60°
2. Blade breakage detector device
3. Blade cleaning brush
4. Hydraulic flow down feed control
5. One piece of bi-metal saw blade.
6. One set of tools
|
Technical Data: |
|
|
Max. Process standard |
90° Φ 240 Square: 310x240 mm 45° Φ200 Square: 200x200 mm 60° Φ140 Square: 140x200 mm |
|
Process speed |
36/75 m/min |
|
Blade Dimension |
2910x27x0.9 mm |
|
Power of Main Motor |
1.8/1.3 kw |
|
Hydraulic power |
0.42 kw |
|
Worktable height |
900 mm |
|
Rotating transform angle |
“+45~-60°” |
|
Dimension |
1600x800x1400 mm |
|
Weight |
470 kg |
