SHELF BEAM- ROLL FORMING MACHINE
Product Description

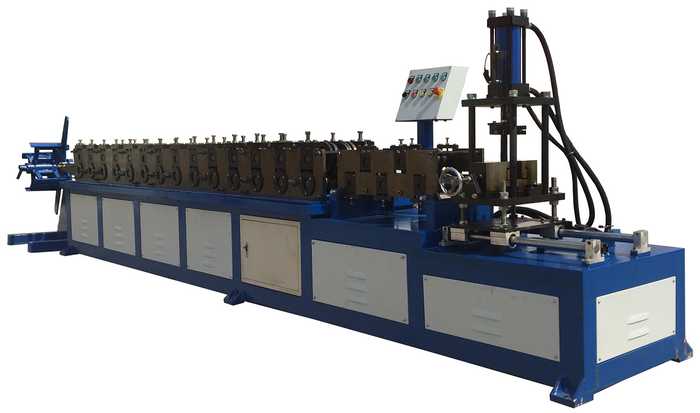

ROLL FORMING MACHINE
Model: SHELF BEAM

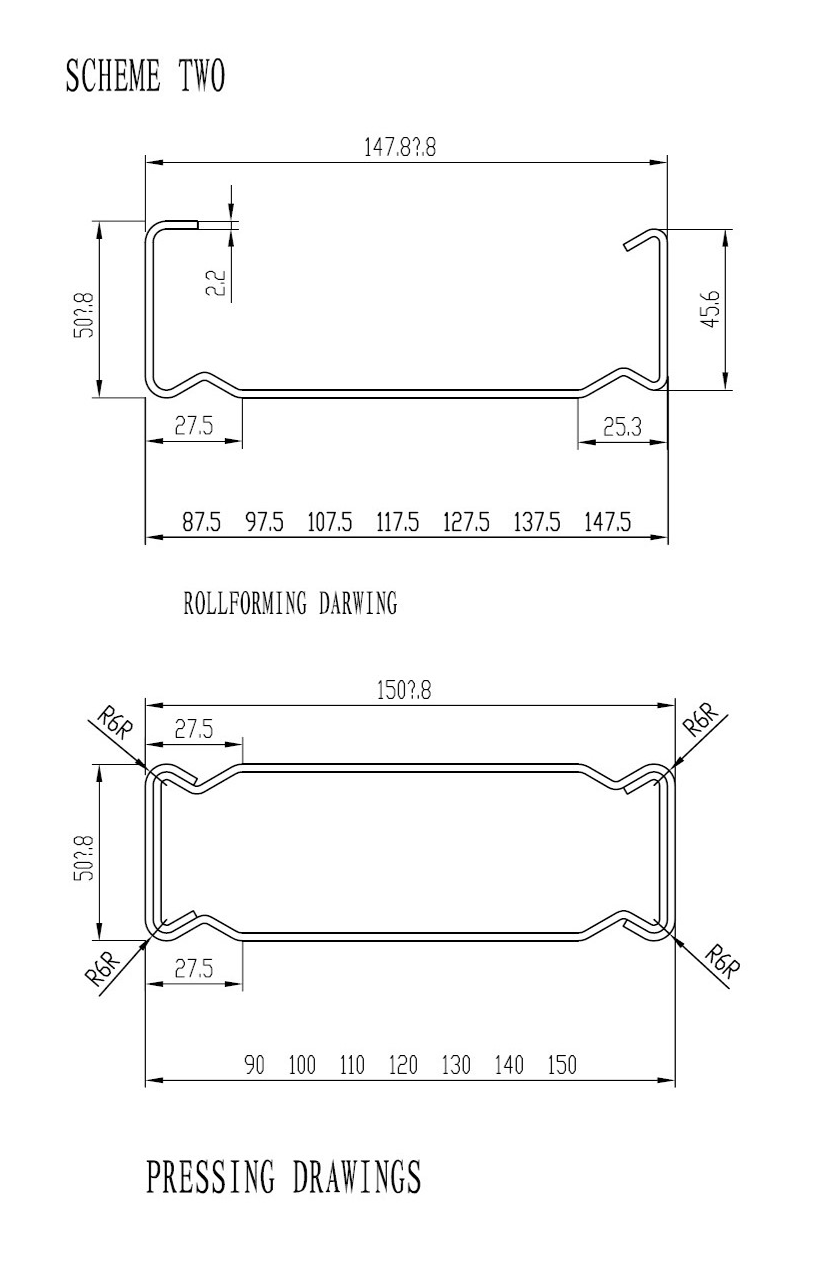

Work piece drawing:

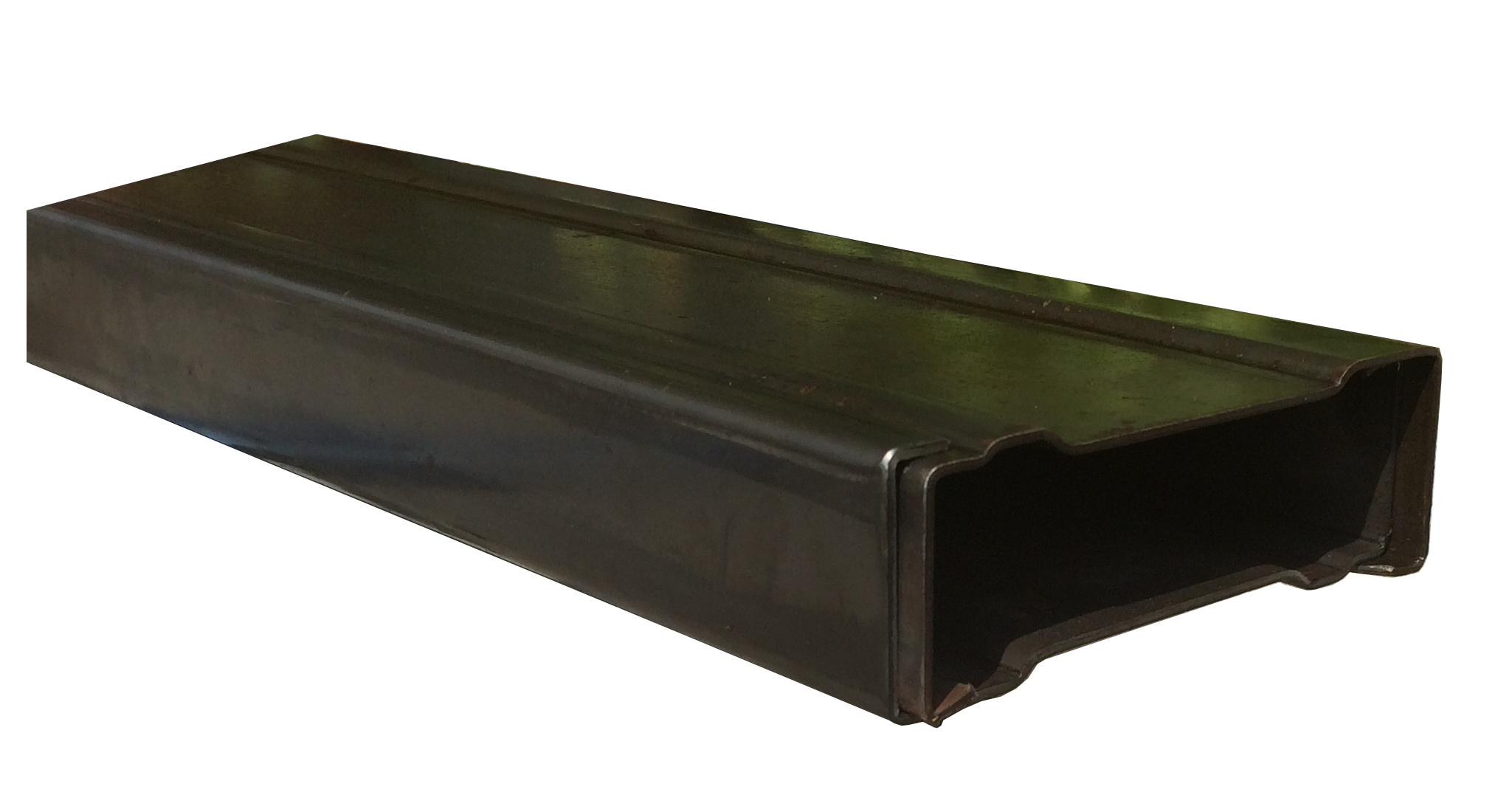

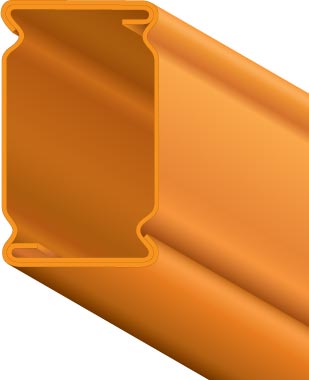

Work piece sample:
Technical Parameters:
|
Item |
Item Matter |
|
Material parameter |
Material：M.S |
|
Thickness：1.8-2.2mm |
|
|
Input width： |
|
|
Workpiece parameter |
1、Drawing ● |
|
2、Sample |
|
|
producting process |
Uncoil→roll forming→cut-off after sizing→final product |
|
Expand Decoiler |
Expand quomodo：Manual |
|
Inner diameter：350-500 |
|
|
Max. load capacity：1500KG |
|
|
Outer diamete：1500mm |
|
|
Max. width：300mm |
|
|
Roll forming machine |
Forming steps：16 team |
|
Levelling steps：5 team |
|
|
Roller’s specification：GCr15 |
|
|
Quenching hardness：HRC58º-60º |
|
|
Bearing model：6209 |
|
|
Roll shaft ：45# |
|
|
Diameter：Φ52 |
|
|
Motor：7.5KW |
|
|
Reduction box：JZQ350 |
|
|
Roll forming speed：6-8M/min |
|
|
Hydraulic cut-off system
Product run-out table |
Material of the cut-off blade：Cr12MoV |
|
Quenching hardnes：HRC58～62º |
|
|
Cut-off blade(with burs)：1 set |
|
|
Return quomodo：Cylinder |
|
|
Table lengths：4000mm |
|
|
Width：100mm |
