TRUNKING CHANNEL

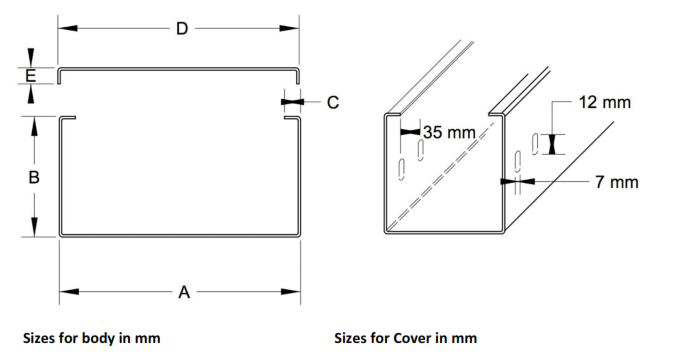

Profile drawing:

Technical Parameters:

Main Body channel

• C channel roll forming machine with 6 sizes and slot hole punching
• Incoming material: G.I or C.R steel in coil.
• Thickness: 0.70 ---1.50 mm
• Steel tensile strength: 37 kg/mm2 or 400 mpa.
• Profile: Refer the confirmed drawing for details.

Main parameters:

• Roll forming station: 18 Nos.
• Material of the roller: Cr15 steel

The range of the adjustable size:
     A: 50 -- 150mm
     B: 50 ---150mm
     Adjusting step: 10 mm or 25mm; can make the

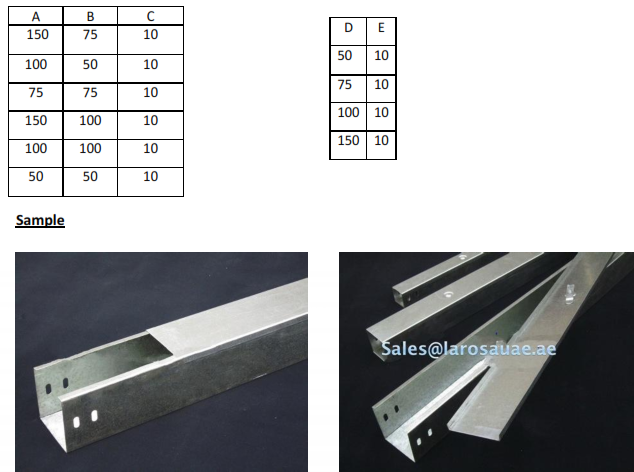

     Profile 6 sizes (50X50; 100X100; 150X75; 75X75; 100X50;150X100)----- Cutting off system: hydraulic cut-off and punching system withOil station.

• Blade: 6 sets to fit the 6 sizes profile.
• Manual de-coiler: 2 tons
• Main motor power: 11KW
• Roll forming speed: 8m/Min
• Control system: ordinary electric applianceControl.
• Approximate dimension: 9800 X 1000 x 1100mm (length x width x height)

Cover roll forming machine.

• Incoming material: G.I or C.R steel in coil.
• Thickness: 0.70 ---1.50 mm
• Steel tensile strength: 37 kg/mm2 or 400 mpa.
• Profile: Refer the confirmed drawing for details.
• 4 sizes: 50x10; 75x10; 100x10; 150x10 made by one Machine

Main parameters:

• Size adjusted by space pieces.
• Roll forming station: 5 Nos.
• Material of roller: Gr5 steel
• Hardness of roller: HRC55-57
• Equip with hydraulic cut-off blade: 4 sets
• Hand operated de-coiler 1.5 ton
• Transmission type: gear and chain.
• Power of machine: 3KW
• Forming speed: 10M/Min
• Common electrical components control.

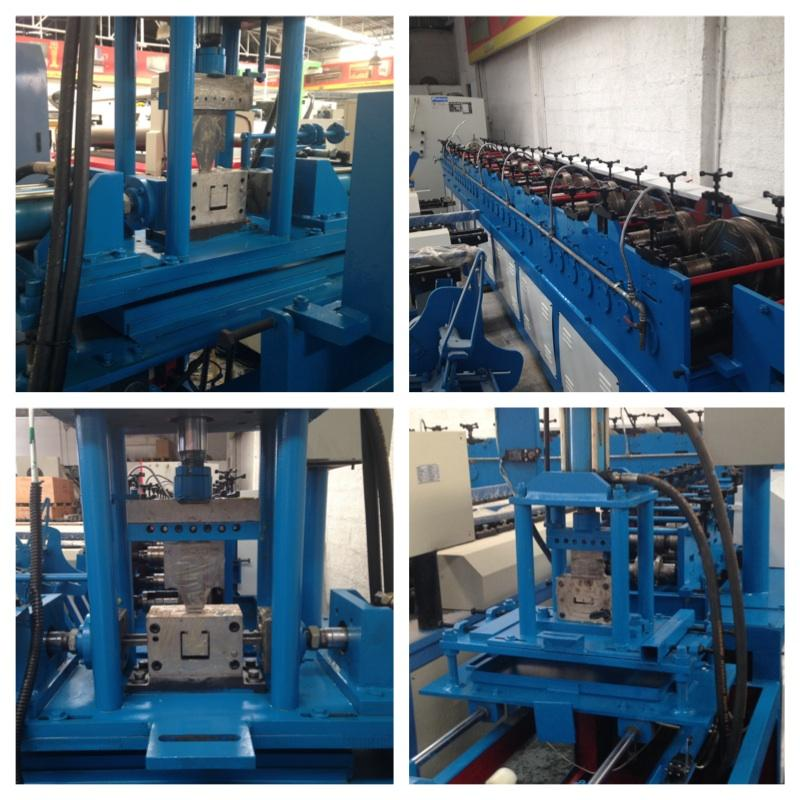

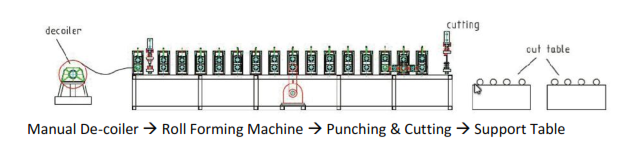

Machine Layout and Photos:
