- UKM 55 — IRON WORKER MACHINE
UKM 55 — IRON WORKER MACHINE
Product Description

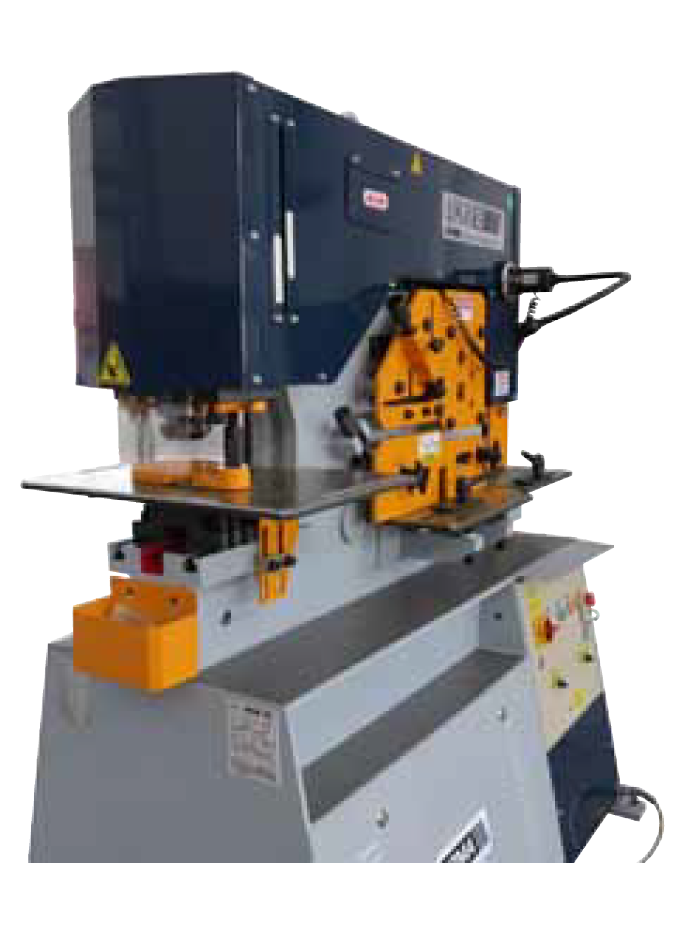

IRON WORKER MACHINE
MODEL : UKM 55
MADE IN TURKEY by UZMA
UKM Ironworkers are ideal for cutting all range of angle, I beam and U-section, straight or 45°. Multi station work enables punching, cutting, notching on the same machine. Double piston models allow two operators working (Punch + one Station).
STANDARD ACCESSORIES
• 2 separate hydraulic piston and foot pedal to allow 2 operator to work at the same time (on UKM 55-65)
• One Hydraulic piston, 5 work station (on UKM 45-60)
• One Hydraulic piston, 4 work station. NO notching station. (on UKM 40)
• More productivity with adjustable piston stroke distance
• Central lubrication system
• Electrical back gauge (on UKM 55-65)
• Working Light (on UKM 55-65)
STANDARD WORK STATION
1. Punching
2. Steel Bar Shearing
3. Angle Shearing
4. Sheet Metal Shear
5. Notching
MODEL (UKM) | UNIT | 55 | |
DIAMETER X MAX. THICKNESS | (mm) | ⌀20 x 20 | |
DIAMETER X THICKNESS | (mm) | ⌀40 x 10 | |
MAX. DIAMETER THICKNESS | (mm) | ⌀100 x 3 | |
STROKE | (mm) | 60 | |
STROKE COUNT IN (20mm) | 25 | ||
THROAT DEPTH | (mm) | 255 | |
WORKING HEIGHT | (mm) | 1030 | |
ROUND/SQUARE | (mm) | ⌀40 | |
⍁40 | |||
ANGLE SECTION (90°) | (mm) | 120 x 120 x 12 | |
ANGLE SECTION (45°) | (mm) | 70 x 10 | |
WORKING HEIGHT | (mm) | 1130 | |
SHEET METAL | (mm) | 200 x 20 | |
SHEET METAL | (mm) | 300 x 15 | |
BLADE LENGTH | (mm) | 317 | |
SHERING WITH ANGLE | (mm) | 80 x 15 | |
WORKING HEIGHT | (mm) | 900 | |
THICKNESS | (mm) | 10 | |
WIDTH | (mm) | 45 | |
DEPTH | (mm) | 90 | |
WORKING HEIGHT | (mm) | 900 | |
U-I SECTION BLADE (for UPN - IPN cutting) | (mm) | 120 x 58 | |
I SECTION BLADES | (mm) | 80 x 9 | |
SPECIAL V-NOTCHING TOOLING | (mm) | 100 x 100 x 10 | |
V-BENDING PRESS BRAKE (BAR BEND MAX.) | (mm) | 250 x 12 | |
V-BENDING PRESS BRAKE (SHEET BEND MAX.) | (mm) | 500 x 3 | |
PUNCHING ON NOTCHER (THROAT DEPT) | (mm) | 125 | |
PUNCHING ON NOTCHER (MAX. CAPACITY) | (mm) | ⌀38 x 8 | |
MOTOR POWER | (kw) | 5, 5 | |
LENGTH | (mm) | 1500 | |
WIDTH | (mm) | 950 | |
HEIGHT | (mm) | 1880 | |
APPROX WEIGHT | (kg) | 1520 | |
POWER (PRESSURE) | (ton) | 55 |
