W12NC NC SERIES- HYDRAULIC CNC 4-ROLLER PLATE BENDING MACHINE

sales@larosagroup.com

W12NC NC SERIES- HYDRAULIC CNC 4-ROLLER PLATE BENDING MACHINE

sales@larosagroup.com
Share

Product Description

HYDRAULIC CNC 4-ROLLER PLATE BENDING MACHINE

Model: W12NC NC SERIES

Intoduction:

W12NC series is hydraulic CNC 4-rolller bending machine. The rising and falling of bottom and side rollers are hydraulically driven and leveling automatically controlled by computer. The synchronization precision reach to 0.02mm and the moving is shown on LCD so as to read it clearly. Top roller is driven by hydraulically pump, epicycloid reducing gear roller to rotate respectively after interflow via several epicyclic redction gear,and the upending and restoring of upender body is driven by hydraulic. This machine is of high technology, Muti-function, high precision, convenient tooperation, which is the ideal large and middle plate bending equipment at present.

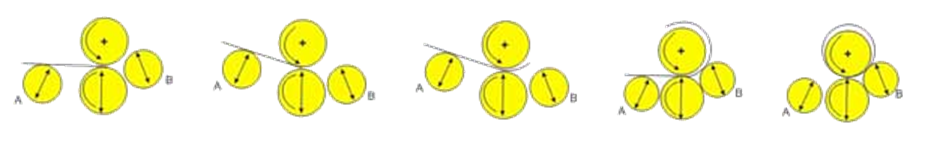

Working Process:


Technical Parameters:



Model

Max
coiling
width
(mm)

Min
coiling
thickness
(mm)

Max
coiling
thickness
(mm)

Yield
Strength
Mpa

Max size
Min. coiling
Diameter
(mm)

Upper
roller
Diameter
(mm)

Lower
roller
Diameter
(mm)

Lower
roller
Diameter
(mm)

Hydraulic
system
(Mpa)

Coiling
speed
(m/min)

Motor
(km)




W12NC-12x3200

3200

12

8

245

1000

400

350

200

18

4

22



W12NC-20x2500

2500

20

16

245

1000

300

380

200

18

4

22



W12NC-30x2500

2500

30

24

245

1300

500

480

340

18

4

37



W12NC-30x3200

3200

30

24

245

1300

520

500

400

18

4

45



W12NC-40x2500

2500

40

30

245

1300

520

500

400

18

4

55



W12NC-40x3200

3200

40

30

245

1500

650

650

450

18

4

55



W12NC-50x2500

2500

50

40

245

1500

650

650

480

18

4

55



W12NC-50x3200

3200

50

40

245

1500

680

650

520

18

4

75



W12NC-60x3200

3200

60

50

245

2000

700

650

550

18

3.5

75



W12NC-70x3200

3200

70

50

245

2000

750

720

600

18

3.5

90



W12NC-80x3200

3200

80

65

245

2500

800

780

620

18

3

110



W12NC-90x3200

3200

90

70

245

2800

900

880

700

18

3

132
