YX55-323-970- FLOOR DECK ROLL FORMING MACHINE

sales@larosagroup.com

YX55-323-970- FLOOR DECK ROLL FORMING MACHINE

sales@larosagroup.com
Share

Product Description

 FLOOR DECK ROLL FORMING MACHINE

Model: YX55-323-970

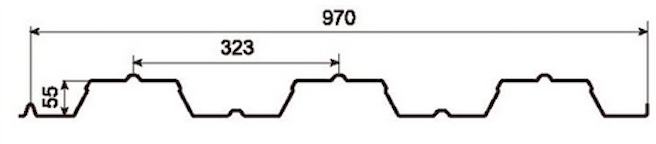

Work piece drawing:

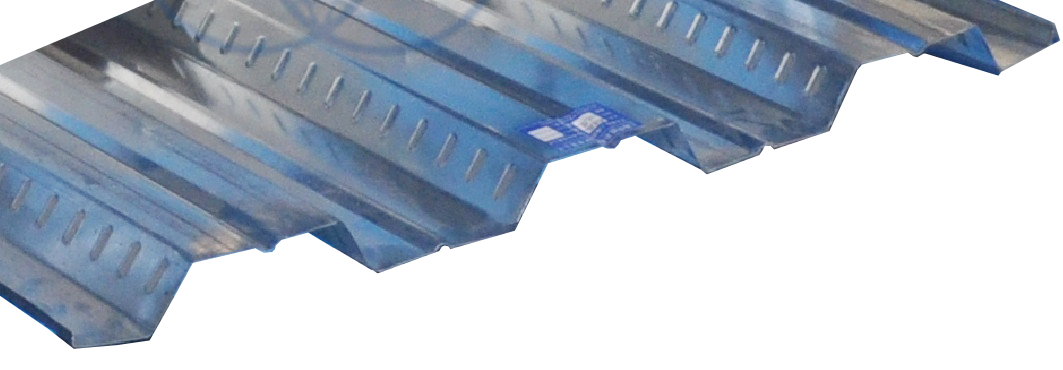

Work piece sample:


Machine lay out:

Uncoiling----Feeding----Roll forming----Cutting----Products collecting




Technical Parameters:

Description

Offered specification

Coil Width

1220mm

Rolling Speed

12-15m/min(not include cutting time)

Rolling Thickness

0.8-1.2 mm

Control System

PLC  (Panasonic) as list in the note

Un Coiler

5 ton manual de-coiler

Roller Stations

31 stations

Knurling Station

1 station

Roller Material

45# forge steel, coated with chrome

Shaft Material and DIA

¢85mm, material is 45# forge steel

Maim Motor Power

22kw (Two 11kw)

Hydraulic Station Power

5.5kw

Hydraulic Pressure

12Mpa

Material Of Cutting

Cr12Mov quenching 58-62℃

Material Of The Stations

Cast iron

Tolerance

3m+-1.5mm

Electric Source

380V, 50HZ,3 phase

Also can satisfy customers require

Way Of Drive

1.2 inch double chain

Machine Type

16mm Wall panel,



Details of each composition:

Cutting:

(1) Cutting motion: The main machine automatically stops and then cutting. After the cutting, the main machine will automatically start.

(2) Material of blade: GCR12with heat treatment

(3) Length measuring: Automatic length measuring

(4) Tolerance of length: +/- 1.5mm

Control Box:  Panasonic Brand

(1) Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase (this is can depend on customer request)

(2) Automatic length measurement:

(3) Automatic quantity measurement

(4) Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved

(5) Length inaccuracy can be amended easily.

(6) Control panel: Button-type switch and touch screen

(7) Unit of length: millimeter (switched on the control panel)

Character of main structure

Main features and components of the machine

1. Main features

a) The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding. It has the ability of strong loading and stable operation when running the machine.

b) All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.

c) We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming.

d) It is very easy to install the equipment and suitable for producing in the factory.

e) The machine has features of low noise and high efficiency
